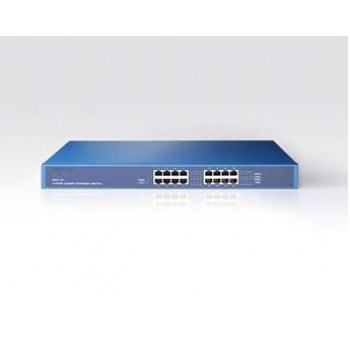

16-port Gigabit Ethernet Network Switch / steel rack

SKU: A1131117105745

Availability: In stock

Free shipping
  • Buy 3 for $109.50 each and save 1%
  • Buy 10 for $109.00 each and save 1%
16-port Gigabit Ethernet Network Switch / steel rack


16-port Gigabit Ethernet Network Switch / steel rack

Condition: New
Transfer rate: 10M/100M/1000M
Switch Type: Gigabit Switch
Number of interfaces: 16 ports
VLAN function: does not support
Stacking function: can be stacked


Product Features:

Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab standards
16 10/100/1000M adaptive RJ45 ports
Support port auto-flip (Auto MDI / MDIX) feature
Supports MAC address self-learning
Supports full-duplex mode
Built-in power supply, 1U steel, 19-inch standard rack structure


Product Description:

Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab standards
Flow control: IEEE 802.3x full duplex using the standard half-duplex adopt Backpressure standards
Storage - forward architecture
16 10/100/1000M adaptive RJ45 ports supporting auto-flip (Auto MDI / MDIX)
10M 16 ports support full / half duplex, 100M full / half duplex, 1000M full duplex
Support auto-negotiation function automatically adjusts the transmission mode and the transmission rate
Supports MAC address self-learning
Provides network clone mode (M1), to solve various network problem of slow network clone
Provide "standard shared" mode (M2), equivalent to a basic standard Gigabit switches can be used as a central switch
Provide "on the joint convergence" model (M3), with two optimized UPLINK port, effectively improve the diskless boot speed, safeguard online games, video and smooth
Dynamic LED indicator that provides a simple working condition and troubleshooting tips
Built-in universal power supply, 19-inch standard rack steel structure design


Supported standards and protocols

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x


16 10/100/1000M adaptive RJ45 port (Auto MDI / MDIX)

Network Media

10Base-T: 3 class or 3 above UTP

100Base-TX: 5 Category UTP

1000Base-T: 5 Category 5 or above UTP

Filtering and forwarding rate

10Mbps: 14880pps

100Mbps: 148800pps

1000Mbps: 1488000pps


Each port

1000Mbps (Speed / connect / work), 10/100Mbps (speed / connect / work)


Power (Power)

(L x W x H)

440mm x 180mm x 44mm

Use of the environment

Operating temperature: 0 ℃ to 40 ℃

Storage temperature: -40 ℃ to 70 ℃

Humidity: 10% to 90% RH non-condensing

Storage humidity: 5% to 90% RH non-condensing

Color Variety of colors
Ports ≤ 16
Transmission Rate 10/100/1000Mbps
