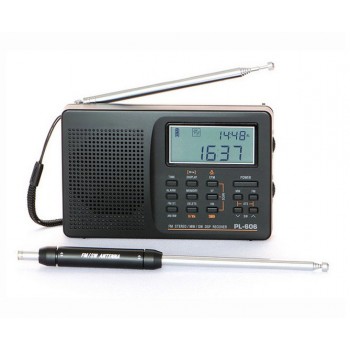

PL-606 full-band portable radio

PL-606 full-band portable radio

Color: Gray Silver Black
Tuner : Digital Tuner
Band : Full Band
Channel : Stereo
Battery : AA batteries
Style: Pocket
Product Weight : 175 grams
Dimensions : Width 127 × height 82 × thickness 28MM

Can receive FM stereo, medium wave, long wave , short wave (2.3 ~ 21.95MHz) radio program
FM receiver covering the 64-108MHz range , can receive China, Europe and the United States to Japan FM radio frequencies , but also listen to some domestic campus radio frequency

The basic technical indicators

Frequency Range / tuning step

Frequency Modulation (FM): 64 - 108 MHz; intelligent stepper 0.01MHz/0.1 MHz

Can choose the frequency coverage :
Standard : 87 - 108 MHz ( standard applicable to all other countries except Japan , Germany , Russia )
Germany : 87.5 - 108 MHz
Japan : 76 - 108 MHz
Russia : 64 - 108 MHz ( including part of the campus radio and domestic 2 - 5 channel TV sound )

Shortwave (SW) 2300 - 21950 kHz; intelligent stepper 1kHz / 5 kHz

Medium wave (MW) 522 - 1620 kHz; intelligent stepper 1kHz / 9 kHz ( suitable for Asia, Africa and Europe )
520 - 1710 kHz; intelligent stepper 1kHz/10 kHz ( suitable for North America )

Longwave (LW) 153 - 513 kHz; intelligent stepper 1kHz / 9 kHz

Noise limited sensitivity:
Frequency modulation (FM) (S / N = 30dB) than 3 uV
Short wave (SW) (S / N = 26dB) better than 20 uV
Medium wave (MW) (S / N = 26dB) better than 1 mV / m
Longwave (LW) (S / N = 26dB) better than 10 mV / m

Optional:
Frequency Modulation (FM)> 60 dB (± 200KHz)
Shortwave (SW)> 60 dB (BW = 3kHz, ± 5KHz)
Medium wave (MW)> 60 dB (BW = 3kHz, ± 9KHz)
Longwave (LW)> 60 dB (BW = 3kHz, ± 9KHz)

FM stereo separation: better than 25 dB

Output Power (THD 10% ) :
Speaker : ≥ 230 mW
Headset : ≥ 20 mW / 32Ω stereo headphone

Number of storage memory : Total 550
Frequency modulation (FM) 100个
Shortwave (SW) 250个
MW (MW) 100个
Longwave (LW) 100个

Awakened mode: Radio Alarm

Static current:
Frequency Modulation (FM) <25mA
Shortwave (SW) <27mA
Medium wave (MW) <23mA
Longwave (LW) <23mA

Speaker Specifications : Diameter 57mm / Impedance 8Ω / power 0.25W cone speaker

Power supply:
Battery (optional ) : Section 2 R6 ( AA ) batteries or rechargeable batteries
External power supply (optional ) : DC 5V ≥ 250mA (USB jack )

Weight: about 175g ( without batteries )

Product Size : Width 127 × height 82 × thickness 28 ( mm )

Accessories:
Shuttle -type rod antenna , external antenna soft , stereo headphones, protective cover, manual , certificate , service guarantee
