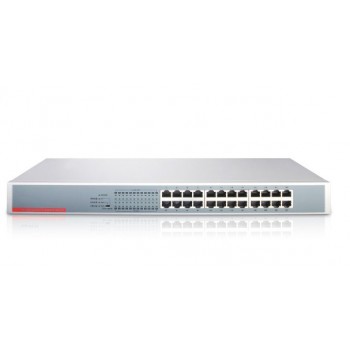

SG124 24 Port Gigabit Ethernet Network Switch / steel rack

SKU: A35465217981

Availability: In stock

$149.00
Free shipping
  • Buy 3 for $148.00 each and save 1%
  • Buy 10 for $147.00 each and save 2%
SG124 24 Port Gigabit Ethernet Network Switch / steel rack

You may also be interested in the following product(s)

8-port Gigabit Switch / 1000M network switches SF1016S 16 Port Fast Network Switch / steel rack S105M 5 port switch 4-port network switch 8-port switch / 8 port network switch 16-port network switch

Details

SG124 24 Port Gigabit Ethernet Network Switch / steel rack


Condition: New
Transfer rate : 10M/100M/1000M
Switch Type: Gigabit Switch
Number of interfaces : 24 ports
VLAN function : does not support
Stacking function: can be stacked



Product Features

24 Gigabit RJ45 ports
Port auto-flip
MAC address self-learning
Network clone , shared standards , brought together three modes of operation on the joint


Features

24 10/100/1000Mbps Ethernet ports, providing high performance , seamless migration to a standard way 1000M network
That even that was easy to install
Superior performance, simple and flexible
For high-speed Gigabit network expansion to provide cost-effective solutions
Support network cloning, shared standards , brought together three modes of operation on the joint
Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab standards
Flow control: IEEE 802.3x full duplex using the standard half-duplex adopt Backpressure standards
Storage - forward architecture
Support port auto-flip (Auto MDI / MDIX), supports 10M full / half duplex , 100M full / half duplex , 1000M full duplex
Support auto- negotiation function automatically adjusts the transmission mode and the transmission rate
Provides network clone mode (M1), to solve various network problem of slow network clone
Provide " standard shared " mode (M2), equivalent to a basic standard Gigabit switches can be used as a central switch
Provide " on the joint convergence " model (M3), with two optimized UPLINK port , effectively improve the diskless boot speed , safeguard online games, video and smooth
Supports MAC address self-learning
Dynamic LED indicator that provides a simple working condition and troubleshooting tips
Built-in universal power supply , 19-inch standard rack steel structure design
Specifications:



Supported standards and protocols

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

Port

24 10/100/1000M adaptive RJ45 port (Auto MDI / MDIX)

Network Media

10Base-T: 3 class or 3 above UTP

100Base-TX: 5 Category UTP

1000Base-T: 5 Category 5 or above UTP

Filtering and forwarding rate

10Mbps: 14880pps

100Mbps: 148800pps

1000Mbps: 1488000pps

LED
Instruction

Each port

1000Mbps ( Speed / connect / work ), 10/100Mbps ( speed / connect / work )

Other

Power ( Power ), FAN ( fan )

Dimensions

(L x W x H)

440mm x 180mm x 44mm

Use of the environment

Operating temperature : 0 ℃ to 40 ℃

Storage temperature : -40 ℃ to 70 ℃

Humidity : 10% to 90% RH non -condensing

Storage humidity : 5% to 90% RH non -condensing

Color Variety of colors
Ports ≤ 24
Transmission Rate 10/100/1000Mbps
