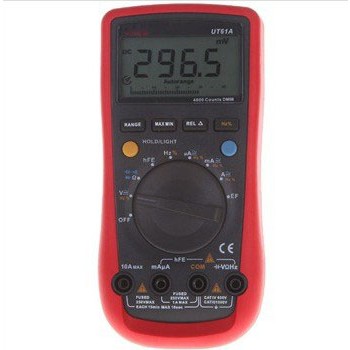

UT61A auto range multimeter

SKU: JD495854

Availability: In stock

$70.00
Free shipping
  • Buy 3 for $69.50 each and save 1%
  • Buy 10 for $69.00 each and save 2%
UT61A auto range multimeter

You may also be interested in the following product(s)

UT61A auto range multimeter

UT61A auto range multimeter

$70.00
Free shipping
UT136C handheld auto-range digital multimeter Auto range digital multimeter / high precision Auto range digital multimeter with backlight UT33D digital multimeter with backlight anti-burn

Details

UT61A auto range multimeter


Basic functions
DC voltage:
400 mV ± (0.8% +3)
4V / 40V/400V ± (0.5% +1)
1000V ± (1% +3)
AC voltage:
400 mV ± (1.2% +5)
4V / 40V/400V ± (1% +3)
750V ± (1.2% +5)
AC current:
400.0μA / 4000μA ± (1.2% +5)
40.00 mA / 400.0 mA ± (1.5% +5)
4.000A/10.00A ± (2% +5)
DC Current:
400.0μA / 4000μA ± (1% +2)
40.00 mA / 400.0 mA ± (1.2% +3)
4.000A/10.00A ± (1.5% +3)
Resistance:
400.0Ω ± (1.2% +2)
4.000KΩ/40.00 KΩ/400.0 KΩ ± (1% +2)
4.000MΩ ± (1.2% +2)
40.00 MΩ ± (1.5% +2)
Capacitance:
40.00nF ± (3% +5)
400.0 nF/4.000μF/40.00μF
400.0μF ± (4% +5)
4000μF reference
Frequency:
10Hz ~ 10MHZ ± (0.1% +4)
Frequency response:
45 ~ 400 Hz √
Duty cycle:
0.1% ~ 99.9% √

Special Features

Auto / manual range √
Diode √
EF detection √
Transistor √
Continuity Buzzer √
Data Hold √
Max / Min √
Backlight √
Relative measurement √
Simulation of 41 √
Input protection √
Input impedance: about 10 MΩ √
Low voltage display: <7.5V √
Maximum display: 4000

General Characteristics
Power supply: 9V battery (6F22) × 1
LCD Size: 65 × 43mm
Colors: Red + Grey
Body weight: 370g
Dimensions: 180 × 87 × 47mm
Standard accessories: battery, pen, adapter plug

Color Variety of colors
Working: Digital Multimeter
