NF-308 hunt instrument / network cable tester

NF-308 hunt instrument / network cable tester

Technical indicators:
( 1 ) Dimensions : Main tester : 185X105X50mm; Receiver : 218X46X29mm.
( 2 ) Power : Main tester : 9V laminated battery ; Receiver : 9V laminated battery.
( 3 ) Display: large-screen LCD dedicated 4X16 character dot matrix ( effective viewport 61.6X25.2mm).
( 4 ) Test Cable Type : STP / UTP twisted pair , coaxial cable, telephone line.
( 5 ) to detect the type of cable : You can find a variety of direct cable 5E, 6E, telephone lines, coaxial cable , USB cable and so on.
( 6 ) Working temperature : -10 ℃ ~ +60 ℃.
( 7 ) mouth and test equipment probes:
    Main tester : RJ45 master port (MAIN), RJ45 port deputy (LOOPBACK),
    Hunt RJ45 port ; Receiver probe ; remote recognizer RJ45 port (R)
    Additional measurable BNC coaxial converter and RJ11 telephone line connectivity.
( 8 ) twisted-pair length measurement : range: 1-350 m ( 3-1200 ft )
    Calibration accuracy : 3% (+ /-0.5M, or + /-1.5ft). ( Calibration cable > 5 m )
    Factory Accuracy : 5% (+ /-0.5M, or + /-1.5ft). (AMP, AT & T5 class line )
    Show: meters or feet .
( 9 ) Length Calibration: User available cable length is known , set the calibration factor , calibration cable length greater than 5 meters .
( 10 ) Wire and Cable Fault Locator : fault detection, open circuit, short circuit, reverse, crossover and crosstalk .
( 11 ) Cable Positioning : 8 remote passive test jacks (ID1-ID8).
( 12 ) automatic delay off time : 30 minutes without operation.

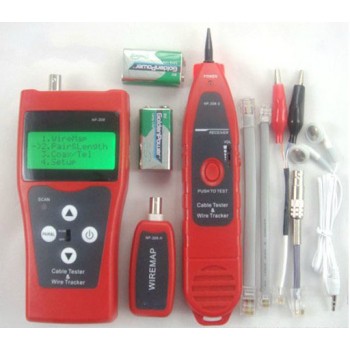

Packing List :
1 LCD display with frequency transmitter --- 1 set
2 --- 1 signal receiver station
3 . Remote identifier --- 1 set
4. 9V battery --- 2
5 headphones --- 1
6. RJ11 adapter cable --- 1
7 . Alligator clip adapter cable --- 1
8. RJ45 adapter cable --- 1
9. BNC adapter cable --- 1
10 special bags - 1
11 Instructions --- 1
