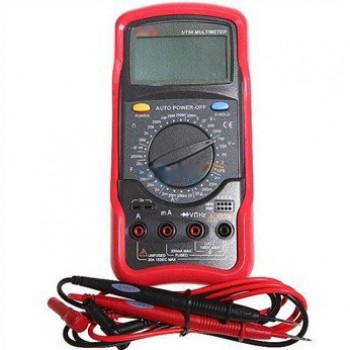

UT56 Standard Digital Multimeter

UT56 Standard Digital Multimeter

Full function overload protection, can be used to measure DC and AC voltage and current, resistance, capacitance, diodes, transistors, and circuits-off frequency

Basic functions

DC voltage 200mV/2V/20V/200V/1000V ± (0.05% +3)
AC voltage 200mV/2V/20V/200V/750V ± (0.5% +10)
DC current 2mA/20mA/200mA/20A ± (0.5% +5)
AC current 2mA/200mA/20A ± (0.8% +10)
Resistance 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ ± (0.3% +1)
Capacitor 20nF/200nF/2μF/20μF ± (4% +20)
Frequency 20kHz ± (1.5% +5)

Special Features

Three tube test √
Diode Test √
Data Hold √
Continuity Buzzer √
Sleep function √
Low-voltage prompts √
Voltage measurement input impedance 10MΩ √
Power 9V battery (6F22) √
Maximum display 19999 √
Display Size 65 × 33mm √
General Characteristics
Body color black
Body Weight 540g (including protective sleeve)
Dimensions 190 × 88 × 34mm
Standard Accessories, batteries, manual, protective cover, warranty card, pen lights (UT-TL) *, light pen (UT-L1/L2) *
