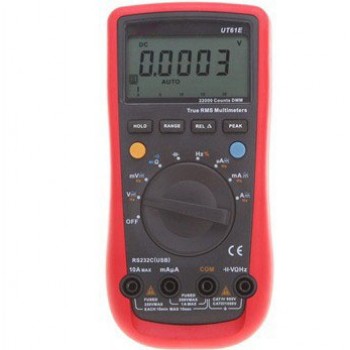

UT61E 4 digit precision digital multimeter

UT61E 4 digit precision digital multimeter

Can be used for measurements: AC and DC voltage and current, resistance, diodes, circuit continuity , capacitors and other parameters

High precision , full-featured
Unique patch test frame , more powerful
RS232 data transmission, connected to the computer , real-time measurement
Analog bar display

Basic functions
DC voltage:
220.00mV ± (0.1% +5)
2.2000V/22.000V/220.00V / ± (0.1% +2)
1000.0V ± (0.1% +5)
AC voltage:
AC frequency response : 45Hz ~ 1k Hz> 1kHz ~ 10k Hz
220.00 mV ± (1% +10) ± (1.5% +30)
2.200V ± (0.8% +10) ± (1.2% +50)
22.00V ± (1.2% +50)
220.00V ± (2.0% +50)
750.0V ± (1.2% +10) ± (3.0% +50)
AC current:
220.00μA / 2200.0μA ± (0.8% +10) ± (1.2% +30)
22.000mA / 220.00mA ± (1.2% +10) ± (1.5% +30)
2.2000A/10.000A ± (1.5% +10) ± (2.0% +30)
DC Current :
220.00μA / 2200.0μA ± (0.5% +10)
22.000mA / 220.00mA
2.2000A/10.000A ± (1.2% +50)
Resistance:
220.00Ω/2.2000KΩ ± (0.5% +10)
22.000 KΩ/220.00 KΩ
2.2000MΩ ± (0.8% +10)
22.000MΩ ± (1.5% +10)
220.00MΩ ± (3% +50)
Capacitance:
22.000nF ± (3% +5)
220.00 nF/2.2000μF/22.000 μF
220.00μF/2.2000 mF ± (4% +5)
22.000mF/220.00 mF reference value
Frequency:
10Hz ~ 220MHZ ± (0.01% +5)
Duty Cycle : 0.1% ~ 99.9% √
Analog bar : 46 segments √

Special Features

Auto / manual range √
Diode √
True RMS √
Continuity Buzzer √
Data Hold √
RS232 data transmission √
Analog bar √
Relative measurement √
Peak √
Input protection √
The input impedance of about 10 MΩ √
Low battery indicator <7.5V √
Maximum display 22000 √

Power supply : 9V battery
LCD Size : 65 * 43mm
Weight : 370g
Size : 180 * 87 * 47mm
